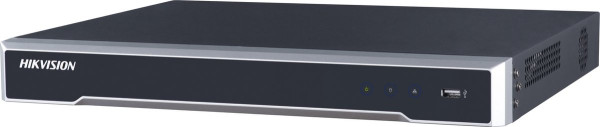

Embedded Plug & Play 4K NVR

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
• 8-ch network cameras can be connected with 80M incoming bandwidth
• Support dual-os to ensure high reliablility of system running
• Support various VCA detection alarm and VCA search
• Support H.265/H.264/MPEG4 video formats

Specifications

Video/Audio Input

• IP video input: 8-ch
• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kO)

Network

• Incoming bandwidth: 80Mbps
• Outgoing bandwidth: 160Mbps
• Remote connection: 128

Video/Audio Output

• HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Audio Output: 1-ch, RCA (Linear, 1kO)
• Synchronous Playback: 8-ch
• VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

• Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Capability: 8-ch@1080P

Hard Disk

• SATA: 2 SATA interfaces for 2 HDDs
• Capacity: Up to 6TB capacity for each HDD
• No harddisks included

External Interface

• Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
• USB Interface: Front panel: 1 × USB 2.0
• Rear panel: 1 × USB 3.0
• Alarm In: 4-ch
• Alarm Out: 1-ch

General

• Power Supply: 100 to 240VAC
• Consumption(without hard disk and POE): = 15 W
• Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
• Working Humidity: 10 % ~ 90 %
• Chassis: 385 mm chassis
• Dimensions: 385 × 315× 52 mm (15.2" 12.4" 2.0")
• Weight(without HDD): = 3 kg (6.6 lb)
